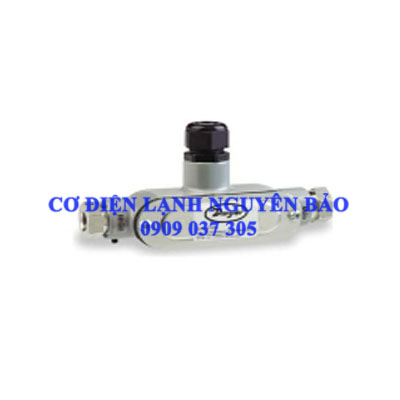

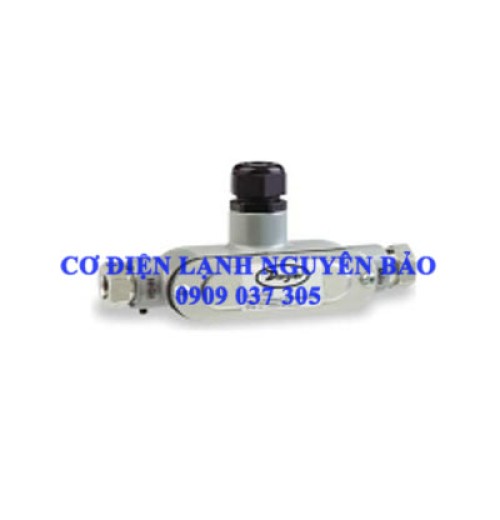

Cảm Biến Chênh Áp - Series 629-Wet/Wet

Model: SERIES 629

Hãng sản xuất: Dwyer- Mỹ

Applications:

Monitor Differential Pressure Across: Flow Elements, Heat Exchangers, Filters, Pumps, Coils, Compressors

Specifications:

Service: Compatible gases and liquids.

Accuracy: ±0.5% F.S. (includes linearity, hysteresis, and repeatability).

Temperature Limits: 0 to 200°F (-18 to 93°C).

Compensated Temperature Limits: 0 to 175°F (-18 to 79°C).

Pressure Limits: See Ordering page.

Thermal Effect: 0.02%/°F (0.036%/°C) includes zero and span.

Power Requirements: 13 to 30 VDC.

Output Signal: 4 to 20 mA. Optional 0-5 or 0-10 VDC.

Response Time: 50 msec.

Loop Resistance: 0-1300 ohms maximum for current output. For voltage outputs, minimum load resistance: 2000 ohms.

Weight: 10.1 oz (286 g).
